One question I am frequently asked at RetroTechnical is:
“What power supply can I safely use with my Walkman?”
It sounds like a simple question, but with vintage portable audio equipment the answer deserves considerably more thought. Sony produced an enormous number of cassette players over several decades. Different models use different voltages, connectors and, importantly, different polarities. Some models are also considerably less forgiving of mistakes than others. Simply finding a power supply with a plug that fits is not enough. Using an unsuitable supply can cause noise, incorrect operation or, in the worst case, permanent damage to electronic components that may now be extremely difficult to replace.
This article is written primarily from a UK perspective, where our mains supply is nominally 230V AC, but the same principles apply internationally. I have also included information for US owners, as a significant number of RetroTechnical machines find new homes in the United States.
My basic rule is simple:
If you are unsure about a power supply, don't plug it in.
For most Walkmans, batteries are the safest place to start until you have established exactly what the machine requires.
Four things you must get right
Before connecting an external supply to any vintage Walkman, I would establish four things.
1. Voltage
The voltage needs to be appropriate for the machine. If a Walkman specifies 3V DC, don't connect a 4.5V, 6V or 9V supply simply because the connector fits. Higher voltage doesn't provide useful "extra power". It subjects the circuitry to a voltage for which it may not have been designed. Remember that these machines may now be more than 40 years old and some of their specialist integrated circuits are effectively unobtainable.
2. Polarity
This is one of the easiest ways to damage vintage equipment. Modern barrel-connector power supplies are commonly centre-positive, whereas Sony used centre-negative supplies on a number of its vintage products. The connector can therefore fit perfectly while applying the voltage backwards.
Never determine polarity from the connector alone.
Check the markings on the equipment and the manufacturer's documentation and, whenever possible, verify the adaptor with a multimeter.
3. Current
Current is frequently misunderstood. If a machine normally requires 300mA and you connect it to a correctly regulated supply capable of providing 1A, the supply does not normally "push" 1A through the machine. The equipment draws the current it requires. The supply does, however, need sufficient capacity for the equipment, including changes in consumption during play, fast-forward, rewind and recording.
In simple terms:
Correct voltage – essential.
Correct polarity – essential.
Adequate current capacity – essential.
4. Regulation and supply quality
Two supplies can both have "3V DC" written on their cases while behaving quite differently electrically. The actual output voltage, regulation, ripple, noise, behaviour under load and isolation from the mains all matter. For valuable vintage electronics, I therefore consider the quality and design of the supply, rather than simply reading the voltage printed on its label.
Current limiting provides useful additional protection
There is another aspect of current worth discussing: current limiting. A good bench supply allows a maximum current to be set. Some purpose-designed external supplies also incorporate over-current and short-circuit protection. If a fault develops and the equipment suddenly attempts to draw an abnormally high current, a current-limited supply can restrict or shut down its output. This is particularly valuable when servicing equipment that has just been repaired or hasn't been powered for many years. It is important to distinguish this from the supply's normal current rating. A 2A supply doesn't automatically put 2A through a Walkman.
Current limiting is an additional protective function.
Batteries aren't current-limited
Batteries have many advantages, but they don't necessarily protect equipment against an internal short circuit. AA cells can supply substantial current into a sufficiently low resistance. So although batteries remove the risks associated with incorrect mains adaptors, they should not be regarded as electronically current-limited power sources. Fortunately, a serious internal short circuit is relatively uncommon.
Linear versus switch-mode power supplies
There are broadly two types of mains power supply vintage audio owners are likely to encounter: Linear power supplies and Switch-mode power supplies (SMPS). There are good and bad examples of both, but understanding the difference is worthwhile.
Linear power supplies
Traditional linear supplies normally use a mains-frequency transformer followed by rectification and filtering. A regulated linear supply adds circuitry to maintain a controlled DC output voltage. A good regulated linear supply can provide extremely clean DC with very low electrical noise. This makes linear supplies particularly attractive when working with sensitive analogue audio equipment. Their disadvantages are primarily size, weight, heat and efficiency. There is also an important distinction between a regulated linear supply and an older unregulated transformer adaptor. They shouldn't be treated as the same thing.
Older unregulated linear adaptors
Many vintage wall adaptors were relatively simple transformer, rectifier and capacitor arrangements. An adaptor might say 6V on its case but produce significantly more than 6V when nothing is connected. As the intended equipment draws current, the output voltage falls. This was normal for many supplies of the period, but it is extremely important when dealing with sensitive vintage electronics. Specialist WM-D6C repairers have, for example, reported measuring genuine nominally 6V Sony supplies significantly above 6V, with one 300mA example producing approximately 7.6V. This demonstrates an important principle:
Old + Sony + correct nominal voltage does not automatically equal safe. A vintage adaptor should be checked rather than trusted solely because its label appears correct.
Switch-mode power supplies
Modern wall adaptors are predominantly switch-mode power supplies. Rather than relying on a large 50Hz transformer, an SMPS switches electronically at a much higher frequency. This allows the supply to be smaller, lighter and more efficient. Many also accept an international input such as:
100–240V AC, 50/60Hz
which is very convenient when equipment travels between countries. However, the switching process introduces high-frequency electrical components which have to be adequately filtered. A high-quality modern SMPS can have excellent regulation, isolation and filtering, so it would be incorrect to say that all switch-mode supplies are inherently bad for vintage electronics. However, their electrical behaviour is different from the supplies around which this equipment was originally designed.
For particularly vulnerable equipment such as the WM-D6C, specialist repairers have reported CX20084 failures associated with switch-mode adaptors. I therefore take a deliberately conservative approach with that particular machine.
Why I use a linear bench supply

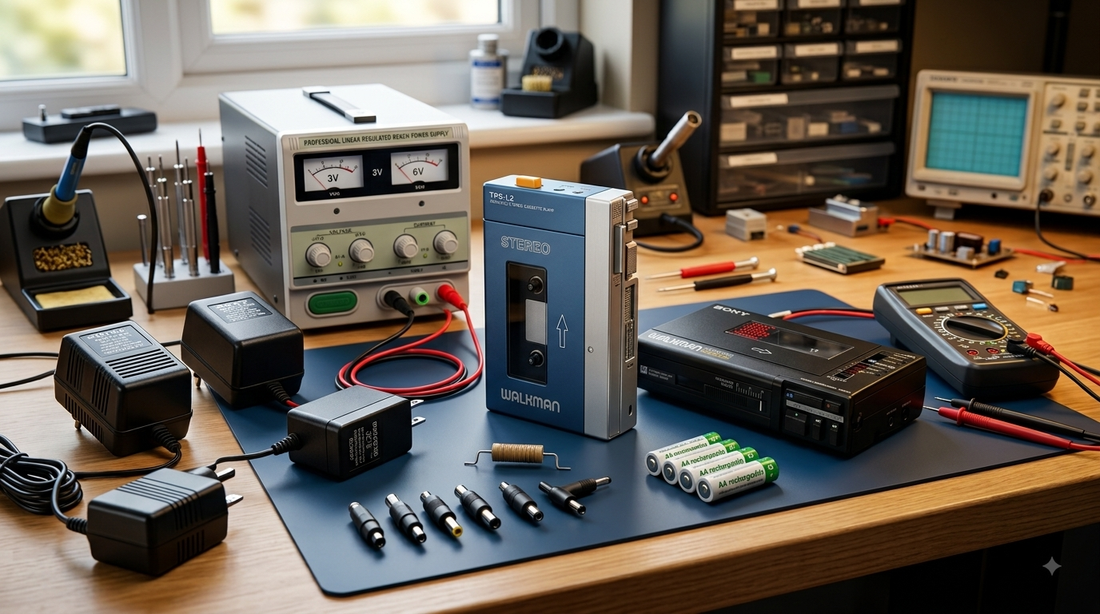

When servicing and testing vintage Walkmans at RetroTechnical, I use a regulated linear bench power supply with adjustable current limiting. This gives me several advantages.
- I can accurately control the voltage.
- I can positively establish the polarity.
- I have a clean, low-noise DC source.
- And I can restrict the maximum available current.
If a machine unexpectedly begins drawing excessive current, I can see that immediately and the supply can limit it. Current consumption itself can also provide useful diagnostic information when repairing electronics. However, a bench supply isn't necessarily something an ordinary Walkman owner needs to buy simply to listen to tapes, but for servicing valuable vintage electronics I much prefer having a known, controlled power source.
The Sony TPS-L2
The original Sony TPS-L2 is a good example of why external power should be treated carefully. It operates from two AA batteries, giving a nominal 3V supply, and has provision for external DC power. For everyday operation, two good-quality AA batteries remain an excellent option. If mains operation is required, I would choose a properly specified 3V DC supply with the correct polarity and connector, rather than an adjustable universal adaptor. For UK owners, any mains supply must be suitable for our nominal 230V/50Hz supply. US owners require a 120V/60Hz version, unless the power supply specifically supports a universal 100–240V input.
A correctly specified and properly tested original Sony adaptor can be an attractive period-correct solution, but remember that the adaptor itself may now be more than 40 years old.
Original does not automatically mean safe.
Avoid universal adjustable adaptors where possible
A typical universal supply might provide:
3V / 4.5V / 6V / 7.5V / 9V / 12V
along with interchangeable plugs. Some allow the connector to be reversed to change polarity. That creates two completely unnecessary opportunities for human error:
Selecting the wrong voltage.
Selecting the wrong polarity.
For valuable vintage equipment, I much prefer a fixed-voltage, fixed-polarity solution.
The WM-D6C – a very different situation
The Sony WM-D6C Walkman Professional deserves a much stronger warning.
Sony describes the D6C as operating from four AA batteries and specifies a nominal 6V DC external supply. However, after looking more deeply into the behaviour of its motor-control circuitry and the experience accumulated by specialist WM-D6C repairers, I do not recommend simply connecting a 6V mains power supply to a WM-D6C. The reason is the Sony CX20084 motor servo IC used in many D6Cs. This component has become scarce and expensive, and damaging it can turn an otherwise excellent D6C into a very difficult repair.
Why the CX20084 is vulnerable
One of the most important pieces of information documented by experienced WM-D6C repairers is that the CX20084 is connected directly to the incoming supply. There is effectively no useful protection between it and an incorrectly connected external supply. More importantly, the chip remains connected to that supply even when the D6C isn't operating. That means connecting an unsuitable adaptor and immediately realising your mistake may still be too late. You don't necessarily have to press PLAY. This is why I treat the D6C power input with exceptional caution.
Six volts may already be too much for the servo IC
This is where the D6C becomes particularly interesting. Although the D6C is nominally described as a 6V machine, experienced repairers have concluded that 6V appears to be at, or potentially beyond, the desirable upper supply limit of the CX20084 itself. The same CX20084 was used in several other Sony Walkmans where it operates from approximately 3V. The D6C's motor is also a much lower-voltage device, so the motor servo itself does not require a full 6V supply. Specialist experimentation has successfully operated the CX20084 through a 4V regulator, specifically to protect the chip from excessive voltage. That is very different from saying that every D6C should be modified to 4V, and I am not recommending owners modify their machines. It does, however, demonstrate why feeding an ageing CX20084 directly from a nominal 6V external supply deserves caution. As an additional precaution, here at RetroTechnical we fit polarity protection as part of our WM-D6C refurbishments, helping to protect the sensitive electronics should a reverse-polarity power supply ever be connected. Going forward, our WM-D6C refurbishments will also incorporate additional voltage protection for the vulnerable servo circuitry, providing another layer of protection against an external supply delivering excessive voltage.
Fresh alkaline batteries can exceed 6V too
Four AA alkaline batteries are nominally:
4 × 1.5V = 6V
but fresh cells can produce appreciably more than 1.5V each. Specialist D6C repairers have measured fresh sets around 6.4V, and there are reported cases where CX20084 failure occurred while alkaline batteries were being used. That doesn't mean alkaline batteries will automatically damage a D6C – Sony obviously designed the machine to operate from AA cells. It does mean that today, with irreplaceable 40-year-old servo ICs, there is a sensible argument for being more conservative than when these machines were new.
My preferred WM-D6C power source – NiMH batteries
For normal everyday operation of an original WM-D6C, my preferred recommendation is therefore:
Four good-quality rechargeable NiMH AA batteries.
A NiMH AA cell has a nominal voltage of approximately 1.2V. Four therefore provide a nominal:
4 × 1.2V = 4.8V
Their actual voltage varies with charge and load, but this provides significantly more voltage headroom for the CX20084 than a fresh set of alkaline batteries. Considering how scarce genuine CX20084 ICs have become, I think it is a sensible precaution.
What about a 6V regulated bench supply?
Sony's service documentation refers to supplying the D6C with regulated 6V DC during servicing. Historically, that was entirely understandable. However, knowing what we now know about the vulnerability and scarcity of the CX20084, I personally would not choose 6.0V as my normal bench voltage for an original D6C containing that servo IC.
When working on one today, my priority is preserving the original servo electronics. A carefully controlled supply around the voltage provided by rechargeable batteries gives the CX20084 considerably more headroom than a full 6V supply. The exact servicing voltage used should, of course, depend on what is being tested or calibrated and the relevant service procedure. This is one of the occasions where following a 40-year-old specification and deciding what represents the lowest-risk approach for a surviving 40-year-old component aren't necessarily the same thing.
The classic symptom of a damaged CX20084
A D6C with a damaged motor servo IC commonly develops a very distinctive problem:
The motor runs much too fast.
In some failures, the motor can also behave incorrectly while the machine is stopped. If a D6C suddenly starts running dramatically faster than normal, particularly after an unfamiliar power supply has been connected, stop using it and have the servo circuitry investigated. Continuing to experiment with different adaptors is unlikely to improve matters.
UK versus US supplies
Here in the UK our nominal mains supply is:
230V AC / 50Hz
In the United States it is approximately:
120V AC / 60Hz
Vintage transformer supplies were commonly manufactured specifically for one market. A US 120V-only adaptor must never be plugged directly into UK 230V mains. Likewise, a UK 230V transformer adaptor isn't automatically appropriate for use in the United States.
Many modern SMPS units accept:
100–240V AC / 50–60Hz
but you should only assume this if it is clearly stated on the manufacturer's label.
Japanese equipment also deserves particular attention because Japan uses nominal 100V mains. Never assume a Japanese 100V vintage adaptor is interchangeable with a US 120V version simply because the physical plug looks similar.
Never trust an online listing alone
An online seller may advertise something as:
“Suitable for Sony WM-D6C.”
That statement alone means very little. In fact, specialist D6C repairers have specifically warned about modern supplies being sold online as D6C-compatible.
For any vintage Walkman you need to establish:
- DC voltage
- Polarity
- Connector dimensions
- Current capability
- Mains input rating
- Supply design and quality
With a WM-D6C I would go considerably further and simply avoid experimenting with unknown mains adaptors altogether.
A multimeter is cheap insurance
If you collect valuable vintage audio equipment, a basic digital multimeter is one of the most useful tools you can own. Before connecting an unfamiliar supply you can verify:
What voltage is it actually producing?
and:
Is the polarity definitely correct?
With an older unregulated supply, checking the voltage with no load is particularly important. For a D6C this matters because the CX20084 is connected to the supply even when the transport isn't operating. An adaptor that only falls to an acceptable voltage after being loaded by the machine can therefore still expose the servo IC to an excessive voltage before the transport starts.
My general recommendation
For most vintage Walkmans:
1. Correct batteries
Usually the simplest and safest starting point.
2. Exact manufacturer-specified adaptor
Potentially suitable, provided it is the correct regional version, in excellent condition and preferably electrically tested.
3. High-quality regulated supply
A good solution where its voltage, polarity, connector and electrical characteristics are appropriate for that specific model.
4. Universal adjustable supplies
My least-preferred solution for valuable equipment because they introduce unnecessary opportunities for selecting the wrong voltage or polarity.
But the WM-D6C is the exception
For an original WM-D6C containing the CX20084, I would be considerably more conservative: My preferred everyday power source is four good-quality NiMH rechargeable AA batteries. I would not recommend a generic 6V mains adaptor simply because the D6C is labelled as a 6V machine.
The RetroTechnical approach
When I refurbish one of these machines, a considerable amount of time goes into stripping it down, cleaning, replacing mechanical components, lubricating the mechanism, repairing electronic faults, setting tape speed, checking azimuth and carrying out extended testing.
I don't see any reason to take unnecessary chances with the power source afterwards. On my bench I use a regulated linear bench power supply with adjustable current limiting because it gives me precise control over voltage and maximum available current while providing a clean DC source.
For something such as a TPS-L2, batteries or a known, correctly specified and tested 3V external supply are sensible choices. For the WM-D6C, I take a much more conservative approach. Despite the machine's nominal 6V specification, the vulnerable CX20084 servo IC deserves additional protection. For normal use, good-quality NiMH rechargeable batteries are my preferred option.
And whichever Walkman you own:
Never choose a power supply simply because the plug fits.
- Check the voltage.
- Check the polarity.
- Check the connector.
- Check the current capability.
- Check the mains input.
- And understand the particular machine you are powering.
These machines have already survived for four decades or more. A little caution with their power source can help ensure they survive for many more.
Disclaimer
This article is provided as general information and reflects both manufacturer documentation and my experience and experience within the specialist vintage-audio repair community. Vintage Sony equipment was produced in numerous revisions and regional versions, and electrical requirements can differ. Always establish the requirements of the exact model and revision before connecting an external power source.
Some of the WM-D6C recommendations in this article are deliberately more conservative than Sony's original specifications. They reflect the age, scarcity and documented vulnerability of surviving CX20084 servo ICs rather than a claim that Sony's original 6V specification was incorrect when the equipment was manufactured.
Batteries avoid many of the risks associated with external mains power supplies, but batteries are not electronically current-limited and can still deliver substantial current into a short circuit. A properly configured current-limited bench supply can therefore provide useful additional protection during servicing.
RetroTechnical cannot accept responsibility for damage caused by an incorrect, defective, unsuitable or incorrectly connected power source, including incorrect voltage, polarity, connector type or mains input voltage.
Mains electricity can cause serious injury or death. Do not dismantle, modify or repair mains-powered equipment unless you are appropriately trained and competent to do so.
